Increased risk of major bark beetle outbreaks - also in Norway

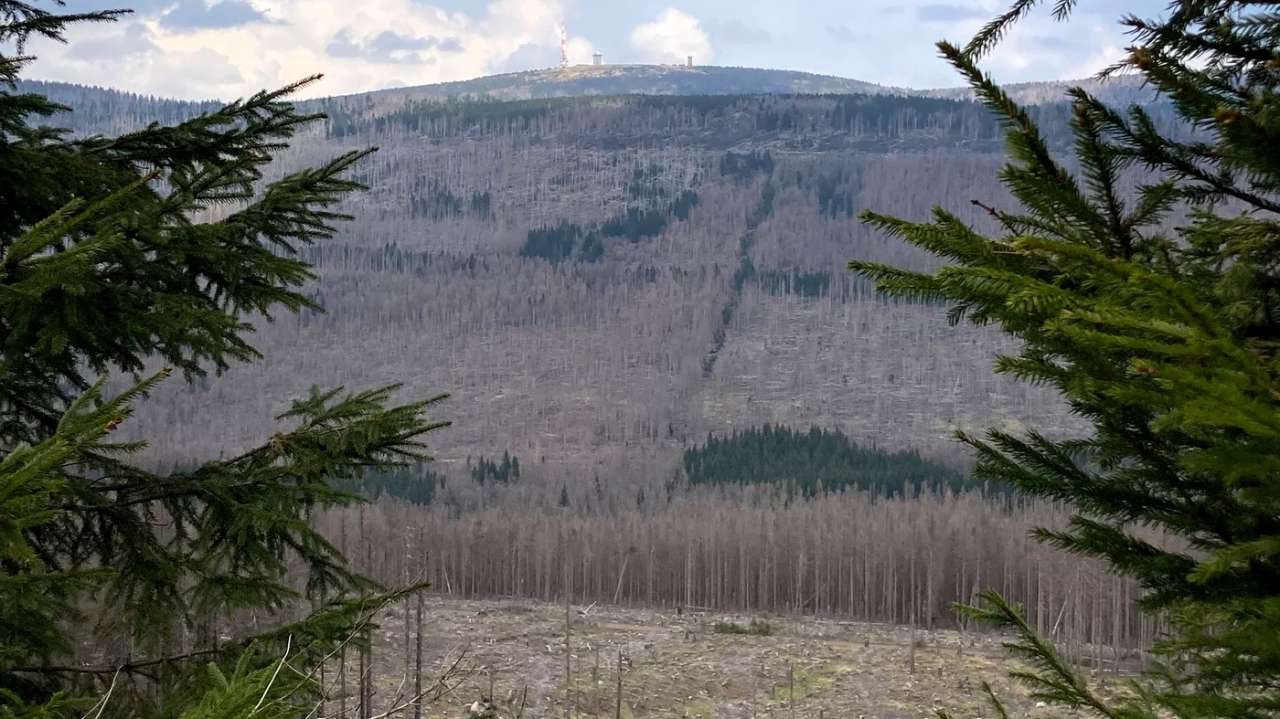

1 - Død skog i Harz - Foto Angela Overmeyer - Max Planck Institute for Chemical Ecology_cropped

The European spruce bark beetle has killed several hundred million spruce trees in Sweden and Central Europe over the past five years. The trees are increasingly weakened by high temperatures and prolonged drought periods and unable to defend themselves against the spruce bark beetle attacks. The example in the picture shows monocultures of planted spruce trees on the Brocken mountains in the Harz region, Saxony-Anhalt, Germany. Photo: Angela Overmeyer, Max Planck Institute for Chemical Ecology

The European spruce bark beetle has killed several hundred million spruce trees in Sweden and Central Europe in the last five years. A warmer climate will ultimately result in more damage also in Norwegian spruce forests. Fewer spruce trees and softer clearcut edges can prevent and mitigate future bark beetle outbreaks.

Ecosystems worldwide are threatened by climate change – and this is especially true for the vast areas of coniferous forests in the northern hemisphere. Spruce forests represent as much as a quarter of Europe's productive forests, meaning forests where logging can be economically profitable, and 45 percent of the northern, boreal forests. These forests are important for biodiversity, carbon storage, and raw materials for industry.

The last years, however, the spruce forests in southern Sweden and Central Europe have experienced catastrophic bark beetle outbreaks. Areas with much planted spruce are particularly hard hit by the ravages of the European spruce bark beetle.

In just one year (2019), 118 million cubic meters of spruce were killed by the spruce bark beetle. This is ten times more than Norway's annual logging. The attack was triggered by the extreme drought summer of 2018.

In addition to damaging timber production, bark beetle attacks also reduce the forest's CO2 uptake. When many trees die, it can lead to more flooding, erosion, and an altered nitrogen balance in soil and streams. In the Czech Republic, several water treatment plants are experiencing problems because the forests, which previously helped purify the water, are gone.

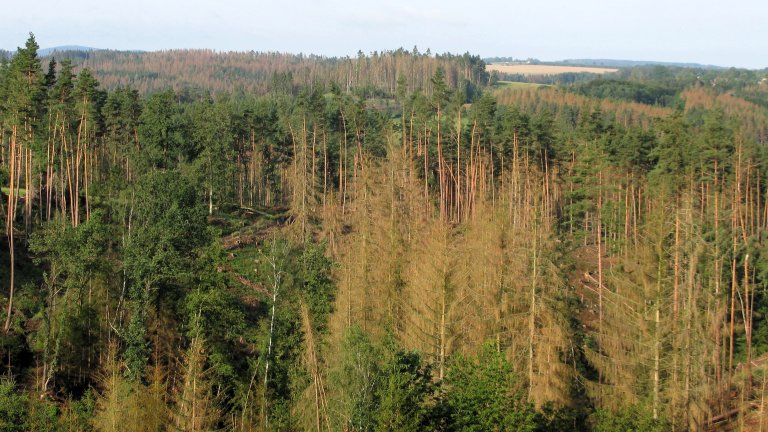

Granbarkbillen har drept flere hundre millioner grantrær i Sverige og Sentral-Europa de siste fem årene. Her er et eksempel fra det böhmisk-mähriske høylandet sør i Tsjekkia. Foto: Jan Liška, FGMRI
The spruce bark beetle has killed several hundred million spruce trees in Sweden and Central Europe over the past five years. Here is an example from the Bohemian-Moravian Highlands in southern Czechia. Photo: Jan Liška, FGMRI.

From harmless to aggressive

The European spruce bark beetle usually does not attack healthy trees. Most of the time, it lays eggs and reproduces in dying spruce trees or fresh timber. However, when the beetles become numerous - or the trees are weakened by drought or wind – the system reaches a tipping point where the bark beetle changes behavior; it goes from relatively harmless to aggressive and begins to attack healthy trees.

The first beetles to attack a tree attract other spruce bark beetles using chemical signals, called pheromones. This behavior can lead to colossal outbreaks, where hundreds of thousands of trees are killed.

Norway has not experienced a major bark beetle outbreak since the 1970s, but there is growing concern - both among researchers and forest managers - about new outbreaks as the climate warms.

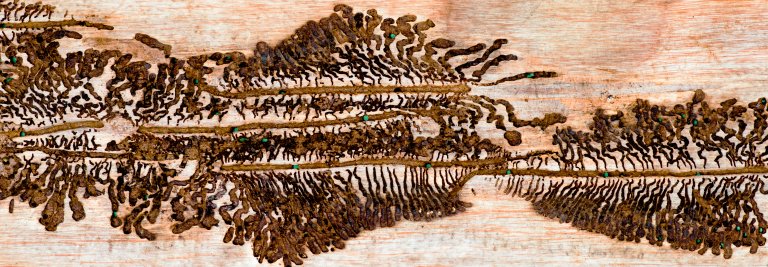

Granbarkbillen er ikke større enn et riskorn, men når billene angriper i samlet flokk kan de drepe store, friske grantrær. Under utbrudd kan barken av hele skoger være fylt opp av gangsystemer til granbarkbillen (Ips typographus). Foto: Dan Aamlid, NIBIO
The spruce bark beetle is no larger than a grain of rice, but when the beetles attack in a collective swarm, they can kill large, healthy spruce trees. During outbreaks, the bark of entire forests can be filled with galleries created by the European spruce bark beetle (Ips typographus). Photo: Dan Aamlid, NIBIO.

The calm before the storm?

NIBIO researcher Jostein Gohli is studying fluctuations in spruce bark beetle populations. He says we now may be experiencing "the calm before the storm" in Norwegian forests.

"The European spruce bark beetle is probably the most destructive insect species in Europe's forests today. It is an aggressive tree killer that attacks spruce-dominated forests in outbreaks that can last for several years.”

"As climate change accelerates, also the large spruce forests in northern Europe may be facing devastating bark beetle outbreaks," he says.

Together with colleagues at NIBIO, Gohli recently published a scientific article identifying factors that increase the abundance of spruce bark beetles.

The study was based on 17 years of bark beetle trap data from a period without outbreaks, information from the forest resource map SR16, and climate data.

The results show that drought, higher temperatures, the amount of spruce forest, and clearcut edges were the most important factors. The trees left along the edge of a clearcut are likely vulnerable to beetle attacks because they are weakened by sudden exposure to sun and wind.

"The spruce bark beetle usually does not attack healthy trees but will do so when they become numerous enough. The more bark beetles in the landscape, the greater is the chance that they will kill healthy trees and start year-long outbreaks," says Gohli.

Both the amount of spruce forest and the shape and size of clearcuts can be influenced by changed forest management. Gohli points out that such changes can be crucial to create more robust spruce forests that can cope with climate change.

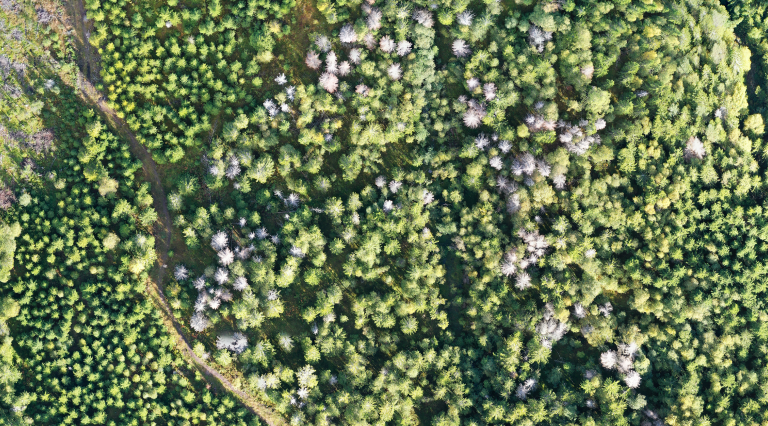

Den vesle granbarkbillen kan drepe tusenvis av trær når den har utbrudd. Slike angrep kan bli mer vanlige i årene fremover. Allerede i dag er det en økt avdøing i norske skoger. Her fra Vestfold fylke. Foto: Jostein Gohli, NIBIO
The small spruce bark beetle can kill thousands of trees when it has an outbreak. Such attacks may become more common in the years to come. Already today, there is increased mortality in Norwegian forests. Here from Vestfold county. Photo: Jostein Gohli, NIBIO.

Living with bark beetles

Insect attacks can contribute to more varied forests, provide more light and more dead wood - which is important for biodiversity. The gaps that are created in the forest canopy also provide opportunities for new trees to grow in the place of fallen giants. However, the enormous scale of the ongoing bark beetle attacks in Central Europe is causing forest researchers to raise alarm bells.

"Many still talk about the need for even more forestry in the same form as today. The truth is that even Norway's boreal forests probably must be geared towards increased stability to avoid enormous future losses of both CO2, biodiversity, and money", says insect expert Bjørn Økland, senior researcher at NIBIO, and one of the co-authors of the study.

"Other research from NIBIO shows that there is already an increase in CO2 emissions as a result of damaged, weakened, and dead trees in Norwegian forests."


"Sprucification" of Europe's forests has benefited the beetles

So, what should a forest owner do?

"Specifically, we recommend planting less spruce in vulnerable areas, and focusing more on mixing-in other tree species, such as pine and deciduous trees", says Jostein Gohli.

"Locally, drought-prone areas are problematic for spruce. But, by vulnerable areas, we also mean the southern parts of Eastern Norway. Here, there are large volumes of spruce that will encounter climate warming early."

Gohli points out that there is now more than twice as much spruce in Norwegian forests as there was 60 years ago. In 1960, there were around 200 million cubic meters of spruce; now it is approaching half a billion cubic meters.

More spruce forests have also been the trend in many other countries, but further south in Europe, forest owners are now reducing the amount of spruce as a result of the bark beetle attacks. In areas of the Czech Republic where the spruce forest has been wiped out, research on which other tree species that can be used to establish new forests is now underway.

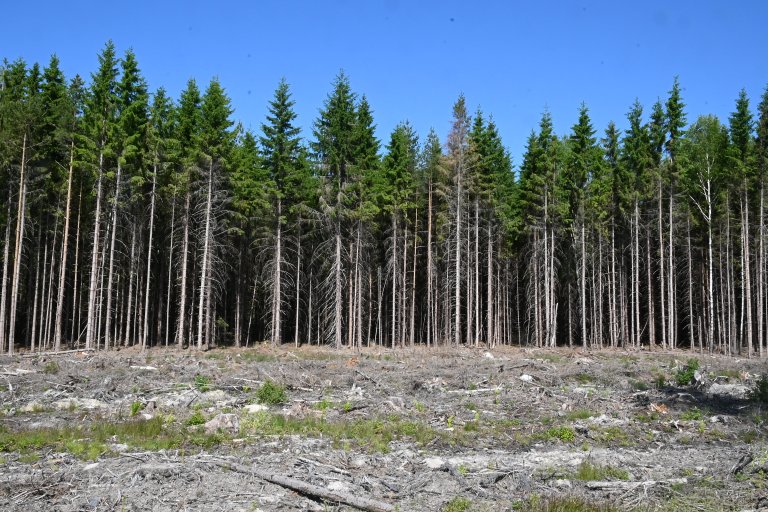

Færre grantrær og mindre hogstkanter kan forebygge og dempe fremtidige barkbilleutbrudd. Et alternativ til dagens flatehogster er mer lukkede hogstformer hvor flatene er små eller det får stå igjen flere trær av ulik høyde, slik at kantsonene ikke blir så skarpe Foto: Roar Ree Kirkevold, Magasinet Skog
Fewer spruce trees and softer clear-cut edges can prevent and mitigate future bark beetle outbreaks. An alternative to current clear-cutting practices is more closed harvesting methods where the clear-cut areas are smaller or more trees of varying heights are left standing, so that the edges are not as sharp. Photo: Roar Ree Kirkevold, Magasinet Skog

Clearcut edges are important for beetle reproduction

Gohli explains that an alternative to today's clearcutting is more closed logging forms where the clearcut areas are small or more trees of varying heights are left, so that the edge zones are not so sharp. Such logging forms are referred to collectively as continuous cover forestry.

"But closed logging is not suitable everywhere and can also lead to other problems, such as more root rot", he says.

"Continuing with volume-dense monocultures of spruce is a strategy that can yield high returns, but it also entails a high risk of extensive bark beetle damage and economic losses in the long run."

To achieve forests that are more resilient to climate change and bark beetles, researchers propose changing the forest structure - that is, the age and species distribution of the forest.

"Natural forests, and other forests that have not yet been clearcut, typically have a favourable structure. If we replace such forests with single-species spruce plantations, we might facilitate more bark beetle problems in the future", says Gohli.

It will necessarily take time to change today's monocultures of spruce and establish a more multi-layered, multi-species forest.

"Given that it takes decades from planting to harvesting, we should start to change our forests as soon as possible. Not least because the forests we plant today will grow up and become harvestable in a climate that probably will be completely different from today’s”, Gohli concludes.

Monitoring forest damage in Norway Bark beetle monitoring
New Thematic Booklet on the European Spruce Bark Beetle

In November 2023, NIBIO published a thematic booklet (in Norwegian) summarizing the spruce bark beetle's life cycle and significance in the forest through ten short chapters. The chapters describe the spruce bark beetle's life cycle, how the beetles can kill healthy spruce trees, causes and consequences of bark beetle outbreaks, how climate change may affect the spruce bark beetle, and measures to prevent bark beetle problems. The target audience for the thematic booklet is forest owners, forestry officials, and anyone else interested in forests and forest damage. Hopefully, increased knowledge about the spruce bark beetle will provide forest management with a better foundation for making informed decisions in the future.

Å fortsette med volum-tette monokulturer av gran er en strategi som kan gi høy avkastning, men det innebærer også en høy risiko for omfattende barkbilleskade og økonomiske tap på lengre sikt, sier barkbilleekspert Jostein Gohli ved NIBIO. Foto: Lars Sandved Dalen, NIBIO
Continuing with volume-dense monocultures of spruce is a strategy that may yield high returns, but it also entails a high risk of extensive bark beetle damage and long-term economic losses," says bark beetle expert Jostein Gohli at NIBIO. Photo: Lars Sandved Dalen, NIBIO.




Climate change is already reducing carbon sequestration in Central European forests dramatically through extensive droughts and bark beetle outbreaks. Further warming may threaten the enormous carbon reservoirs in the boreal forests in northern Europe unless disturbance risks can be reduced by adaptive forest management. The European spruce bark beetle (Ips typographus) is a major natural disturbance agent in spruce-dominated forests and can overwhelm the defences of healthy trees through pheromone-coordinated mass-attacks. We used an extensive dataset of bark beetle trap counts to quantify how climatic and management-related factors influence bark beetle population sizes in boreal forests. Trap data were collected during a period without outbreaks and can thus identify mechanisms that drive populations towards outbreak thresholds. The most significant predictors of bark beetle population size were the volume of mature spruce, the extent of newly exposed clearcut edges, temperature and soil moisture. For clearcut edge, temperature and soil moisture, a 3-year time lag produced the best model fit. We demonstrate how a model incorporating the most significant predictors, with a time lag, can be a useful management tool by allowing spatial prediction of future beetle population sizes. Synthesis and Applications: Some of the population drivers identified here, i,e., spruce volume and clearcut edges, can be targeted by adaptive management measures to reduce the risk of future bark beetle outbreaks. Implementing such measures may help preserve future carbon sequestration of European boreal forests.
