Analysis of clopyralid and aminopyralid at NIBIO

In 2020, NIBIO established an analysis method for the herbicides clopyralid and aminopyralid, and in a separate study detected clopyralid in liquid organic fertilisers, pelleted livestock manure and compost soil. The concentrations were in the range of 4–1200 µg/kg, with the largest findings in liquid organic fertiliser. Aminopyralid was not detected. You can read more about the clopyralid problem here, and if you want to submit a sample for analysis with us, you will find the information you need on this page.

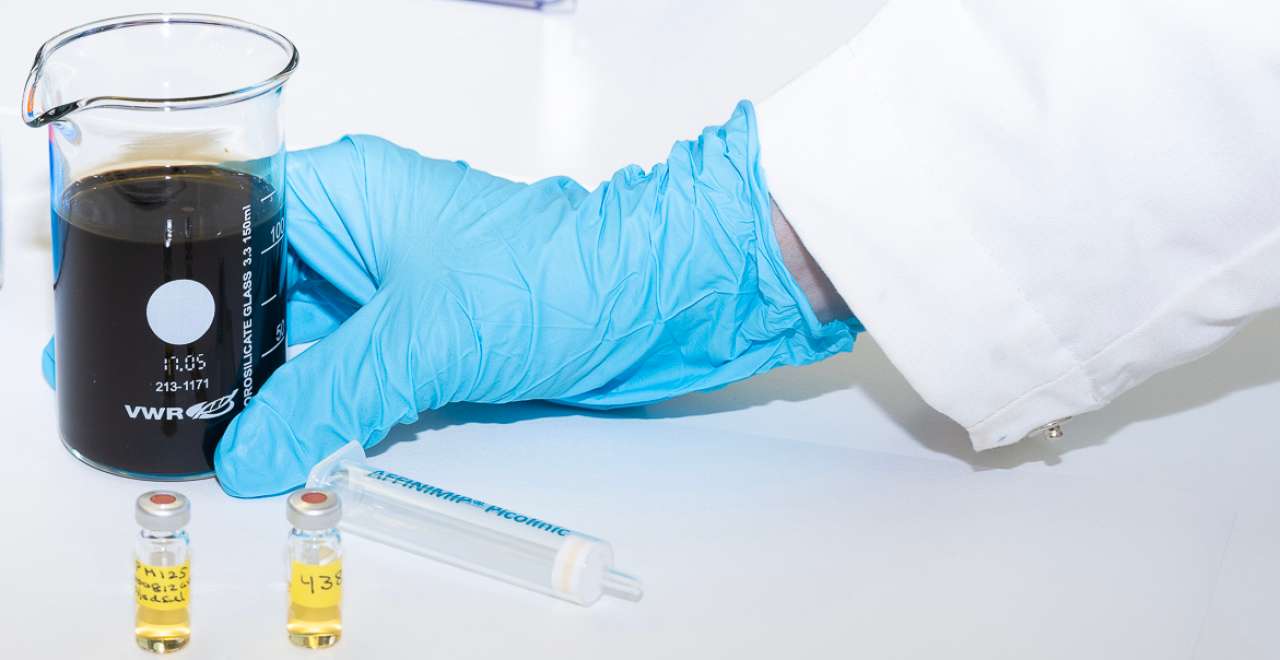

erfl-20200827-122223
Photo: Erling Fløistad
Contacts
Contacts

Sample reception, analysis and shipping: pesticidlab@nibio.no Requests for analyses and follow-ups of samples can be sent to Kari Stuveseth or Marianne Stenrød

Organic fertilisers, compost and soil contaminated with clopyralid

In the last couple of years, gardeners in Norway, Sweden and Denmark have frequently reported a lack of growth in vegetables and damaged crops. The symptom of leaves curling in led to a suspicion of soil, compost and organic fertilisers being contaminated with pyralid herbicides. Clopyralid and aminopyralid mimic the plants' own hormone, auxin, and disrupt plant development even at very low concentrations.

Clopyralid and aminopyralid bind to the auxin receptors in the plant, and if enough receptors are blocked, the plant will die. Monocot plants, such as cereals, are not affected. Other known synthetic auxins used as herbicides are 2,4-D, mecoprop, dicamba, picloram and triclopyr, but it is primarily the pyralids, especially clopyralid, that are problematic because they are not degraded well in soil/straw/plant residue.

Clopyralid detected in pelleted livestock manure may originate from previously sprayed straw in the manure but may also be due to straw and grass used for feed containing pyralids, as clopyralid in feed mostly goes straight into urine and manure.

Clopyralid in organic fertilisers may come from vinasse. Vinasse is a by-product of yeast, sugar and ethanol production. The vinasse used in the plant industry for sale on the Nordic market comes mainly from sugar beet produced in Germany, France, and Poland. Spraying with clopyralid in sugar beet production causes clopyralid to end up in the vinasse.

What are harmful levels of pyralids?

In 2021, the Norwegian Food Safety Authority tightened its regulations on fertilisers in terms of pyralid contamination and announced that "fertilisers should not be marketed for sensitive crops if the recommended use leads to a content of more than 1 μg/kg of aminopyralid or clopyralid, individually or in combination in a soil/culture medium. For all fertiliser products, recommended use must not lead to damage to the plants for which they are marketed, or to sensitive crops in subsequent growing seasons. During inspections, the Norwegian Food Safety Authority will be entitled to ask for documentation of assessments that have been made and follow up on the products that are sold.”

Plants have different sensitivities to clopyralid. For example, growing strawberries in a soil treated with fertilisers containing a high level of clopyralid can work, while more sensitive plants tolerate less clopyralid and die. Plants particularly sensitive to clopyralid are:

  • Beans, clover, lentils, lettuce, peas, tomatoes, sunflowers (can withstand less than 1 µg/kg in the soil)
  • Plants slightly less sensitive to clopyralid: Potato and corn (can withstand less than 10 µg/kg in the soil)
  • Non-sensitive plants: Strawberries (tolerates 1000 µg/kg) and asparagus (1000 µg/kg).

The list is not exhaustive as there is still a lot we do not know about the tolerance limits of different plants. Different cultivars may also have different tolerances.

Calculation of clopyralid dosage in soil

For a producer or grower to be able to assess whether a liquid organic fertiliser with a known clopyralid content can lead to damage to sensitive plants, a calculation must be made based on the recommended dose on the label. NIBIO has prepared a calculation spreadsheet to help with this – see the link on the left-hand side.

Fritidsodlingens Riksorganisation (FOR) in Sweden has conducted its own investigations of pyralid content in different fertiliser products on the Swedish market. (See the link on the left; report in Swedish).

NORSØK in Tingvoll has carried out cultivation experiments with fertiliser products containing clopyralid. These are described in a separate report. (See the link on the left; report in Norwegian).

Analysis of clopyralid and aminopyralid at NIBIO

In the NIBIO M125 method, aminopyralid and clopyralid are measured in soil, compost, liquid and pelleted fertilisers with a specific extraction method using a molecular-imprinted polymer that traps clopyralid and aminopyralid from the samples. This results in very pure sample extracts. The aminopyralid and clopyralid content in the extract is measured using LC-HRMS with limits of quantification at 2–7 µg/kg, depending on the type of sample.

See link on the left for an analysis request form for soil, sediment and other samples.

Tick method number “M125” on the request form. Send a representative sample of at least 100 grams. Shake/mix the sample well before transferring to a new bottle/bag or send the entire original package. When shipping samples from abroad to our laboratory in Ås, Norway, you will need to declare the package content and value so that the package is not stopped/delayed by the border control/customs in Norway. We refer to Norwegian customs for more information about this.



Send the samples to:

NIBIO Biotechnology and Plant Health

Department of Pesticides and Natural Products Chemistry, FAO: PROEVEMOTTAK,

Høgskoleveien 7, NO-1433 ÅS, NORWAY
